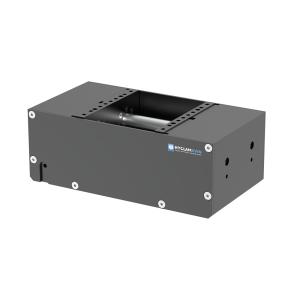

2-Jaw Pneumatic Parallel Long Stroke Gripper TPL
TPL Grippers with Extended Stroke & Compact Four-Piston Design for Superior Grip and Efficiency
Product Information
Outstanding Performance

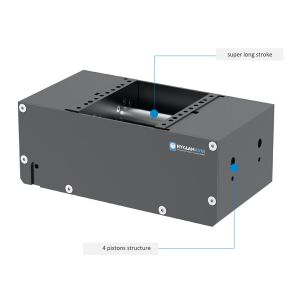

1. The TPL grippers are equipped with a long stroke and a four-piston system.
● Longer stroke to accommodate specialized working conditions
● Distinctive four-piston design, reduced volume, and increased gripping force
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protection class IP |
| TPL-40A | 40 | 1790/1050 | 4.5 | 8.95 | 0.40/0.40 | 0.02 | 40 |
| TPL-70A | 70 | 4450/2940 | 9.1 | 22.25 | 0.70/0.70 | 0.02 | 40 |
