2-Jaw Pneumatic Parallel Economical Gripper TSC
TSC Lightweight and Versatile 2-Jaw Pneumatic Parallel Economical Gripper Design for Small Parts Handling Magnetic Switch Interface
Product Information
Excellent performance

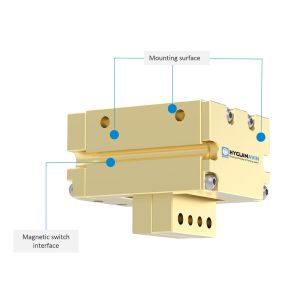

1. The TSC grippers come with a magnetic switch interface and multiple installation options.
● The body is constructed from high-strength aluminum alloy, ensuring both lightness and strength
● With six available specifications, it is ideal for handling and placing small parts
● Provides a high price-performance ratio
● Magnetic switch interface
● Can be mounted on three sides for versatile use
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protecti on class IP |
| TSC-25 | 2.5 | 16/16 | 0.05 | 0.08 | 0.03/0.03 | 0.02 | 30 |
| TSC-40 | 4 | 50/50 | 0.14 | 0.25 | 0.05/0.05 | 0.02 | 30 |
| TSC-75 | 7.5 | 110/110 | 0.20 | 0.55 | 0.06/0.06 | 0.02 | 30 |
| TSC-100 | 10 | 170/170 | 0.33 | 0.85 | 0.09/0.09 | 0.02 | 30 |
| TSC-120 | 12 | 240/240 | 0.53 | 1.2 | 0.10/0.10 | 0.02 | 30 |
| TSC-150 | 15 | 370/370 | 0.92 | 1.85 | 0.11/0.11 | 0.02 | 30 |
Recommended accessories
